Dual Independent Fire Suppression System
Pack-level aerosol fire suppression + whole
cabin gas fire protection for all-round fire safety guarantee.
115kWh Capacity
All-in-One Cabinet
Custom Branding Available
Peak Shaving
Cabinet Sodium Ion BESS

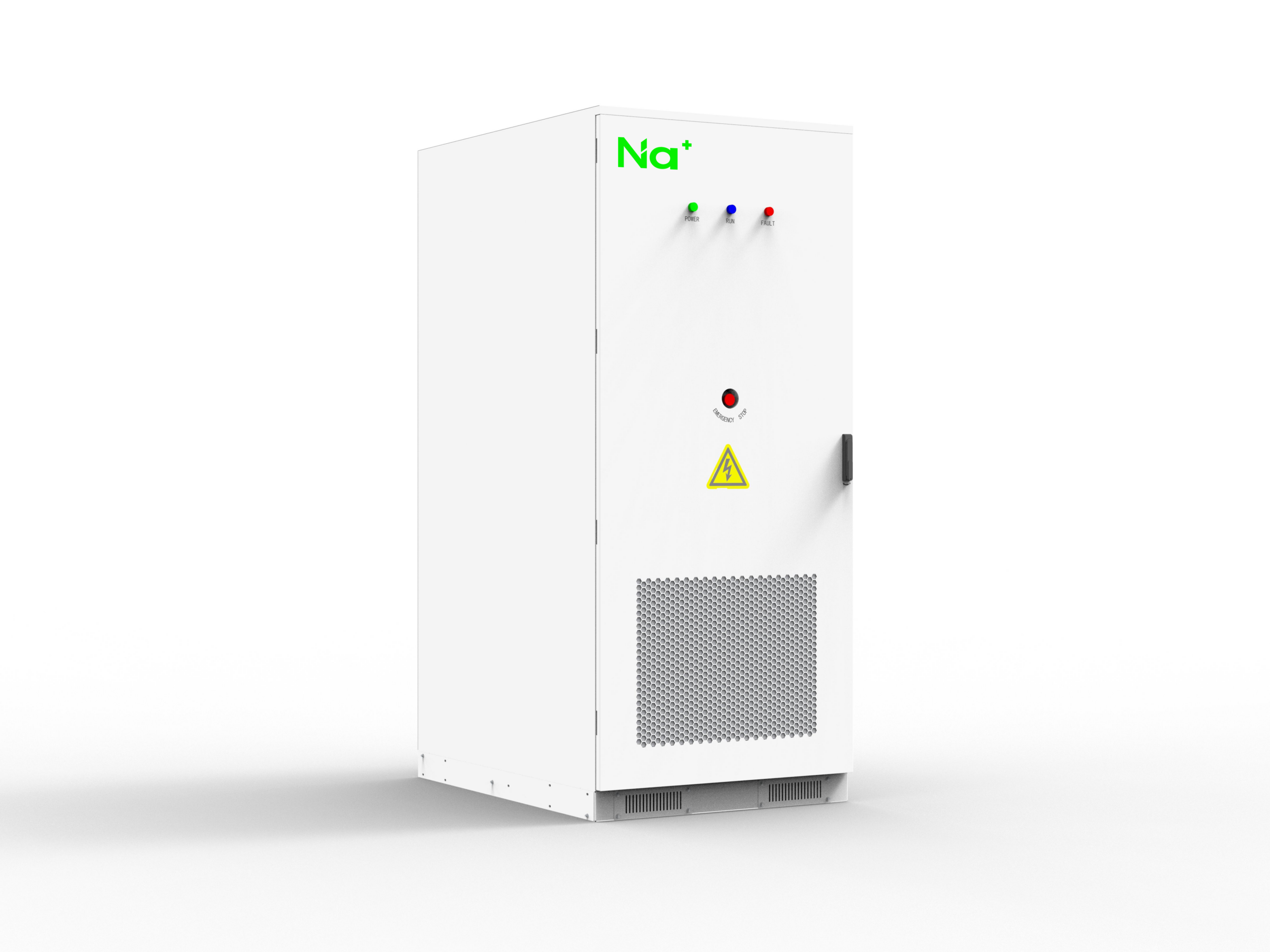

115KWH Cabinet Sodium Ion BESS
The 115kWh cabinet sodium-ion BESS adopts an all-in-one integrated design, housing the battery, BMS, and thermal management system within a single, easy-to-deploy cabinet. This medium-capacity solution is perfectly sized for a wide range of Commercial & Industrial (C&I) applications, helping businesses reduce electricity expenses through peak-valley load shifting and providing reliable emergency backup power.

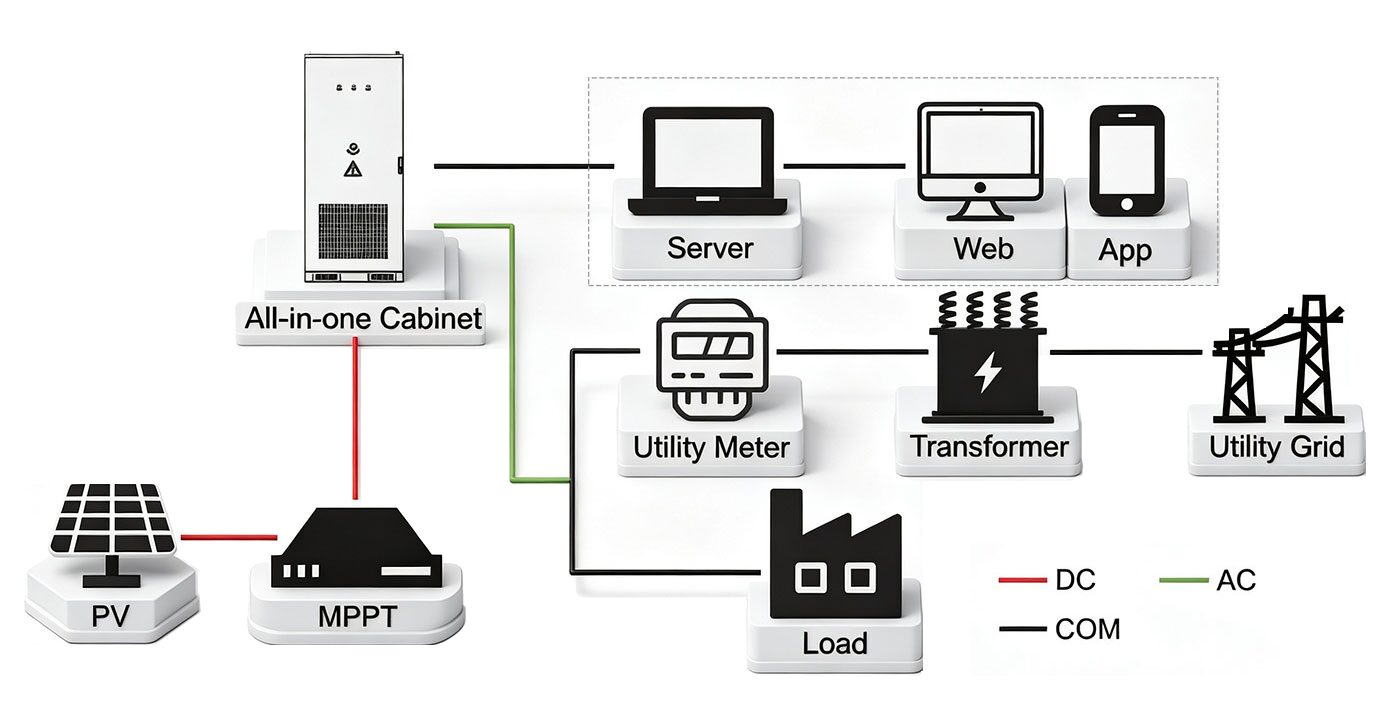

- PV energy storage for industrial & commercial plants
- Peak-valley load shifting to cut electricity expenses
- Emergency backup power for factory equipment during power failure
- Off-grid power supply for distributed microgrid
Advantages
Application
Parameters
Model
NA-CBESS-115
Battery Type
NaCP71173208-160E3
Nominal Capacity
160Ah
Battery Configuration
1P240S
Nominal Energy
115.2kWh
Nominal Voltage
720V
Operating Voltage Range
432~828V
Max. Continuous Charge/Discharge Current
139A
Charge/Discharge Rate
≤0.87P
Max. Charge-discharge Efficiency
≥92%
Cycle Life
≥10000 (@25℃±2℃, 0.5P/0.5P, 70% EOL)
Standard Charge/Discharge Current
160A
Fire Protection System
Aerosol
Rated Charge/Discharge Power
100kW
Max. Charge/Discharge Power
110kW
Max. Overload Capacity
1.1 times for long-term, 1.2 times for 1 minute
Max. Charge/Discharge Current
190A
Rated Grid Voltage
400V
Allowed Grid Voltage Range
400V ±3%
Allowed Grid Frequency
50Hz/60Hz
Voltage Harmonic Distortion
≤3% (@full load)
Grid Type
3P4W (Three-phase Four-wire)
Power Factor
-0.99 ~ +0.99
Cooling Method
Intelligent Air Cooling
Ingress Protection
IP54
Anti-Corrosion Grade
C4
Max. System Efficiency
96%
Charge Operating Temperature
-25℃~55℃
Discharge Operating Temperature
0℃~55℃
Storage Temperature
0℃~40℃
Relative Humidity
0~95%RH (Non-condensing)
Max. Working Altitude
≤2000m (>2000m derating)
Communication
Ethernet / RS485 / Modbus TCP / Modbus RTU
Cooling
Liquid Cooling
Dimensions (L×W×H)
1300 × 1000 × 2450mm
Net Weight
2300kg
Max. Parallel
5
System Certification
UN38.3, MSDS, IEC61009, IEC62477
