High-Performance
Wide Temperature Range
Long Cycle Life
OEM/ODM Available
Off-Grid Sodium Ion Battery

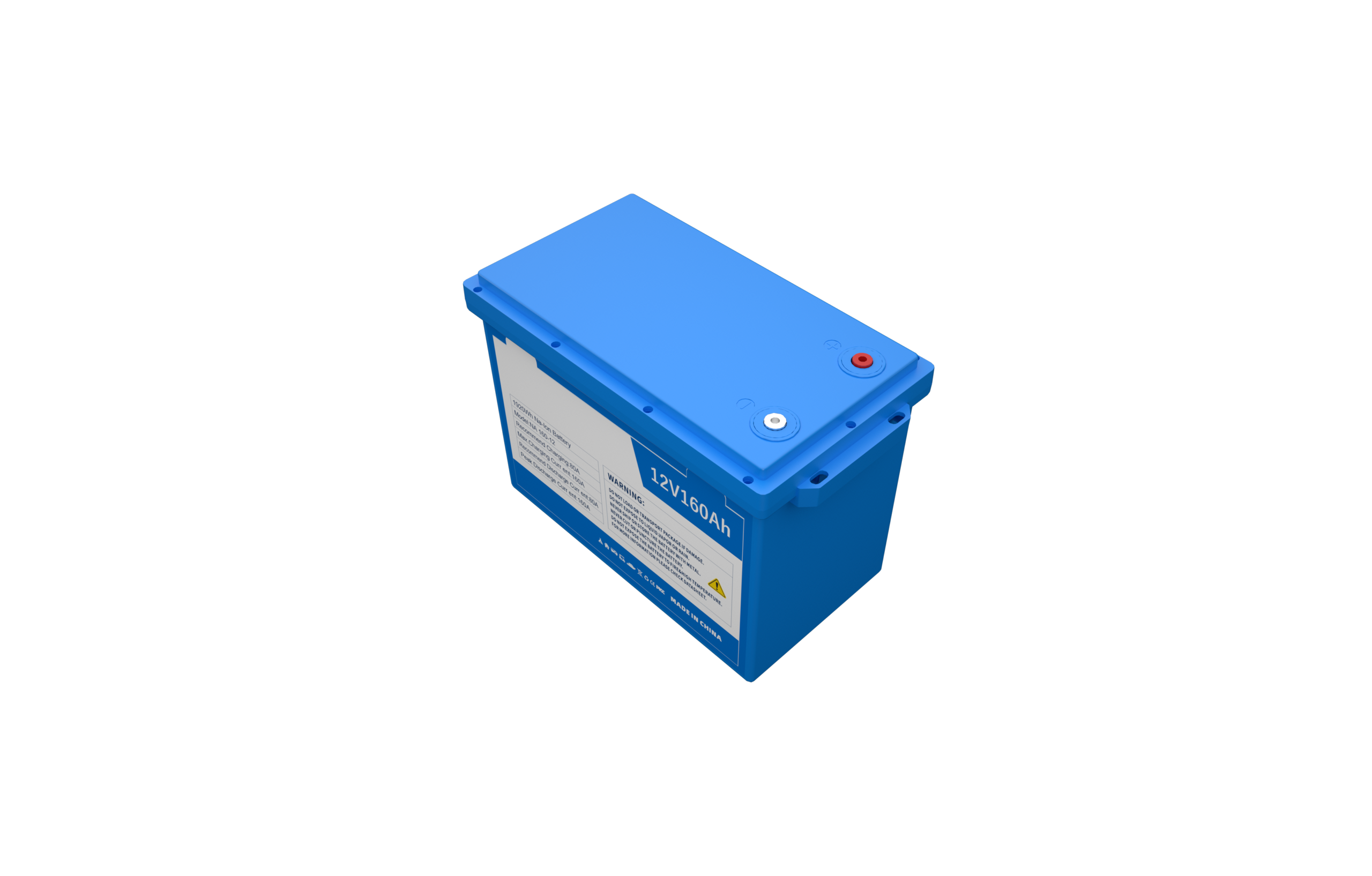

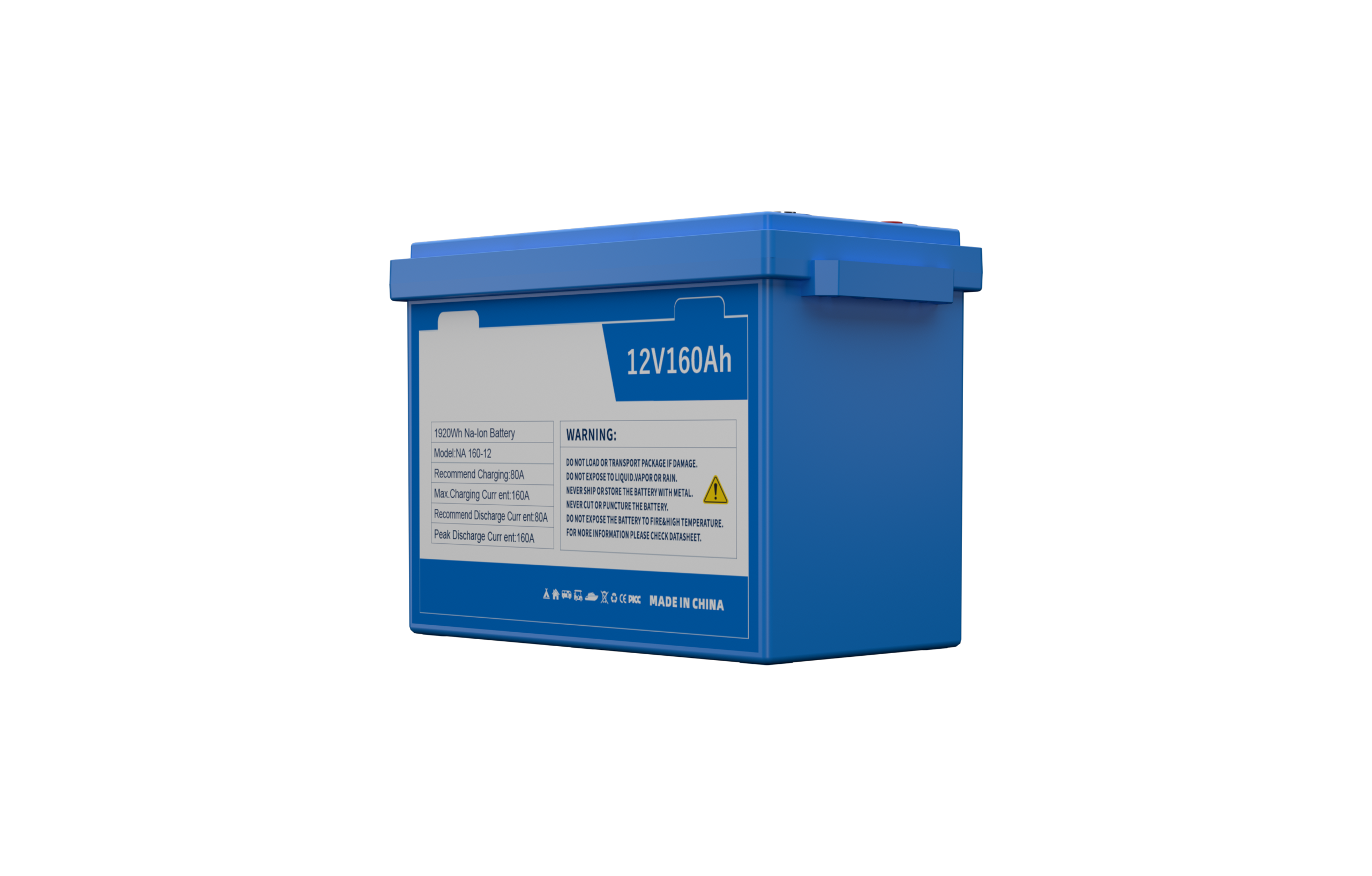

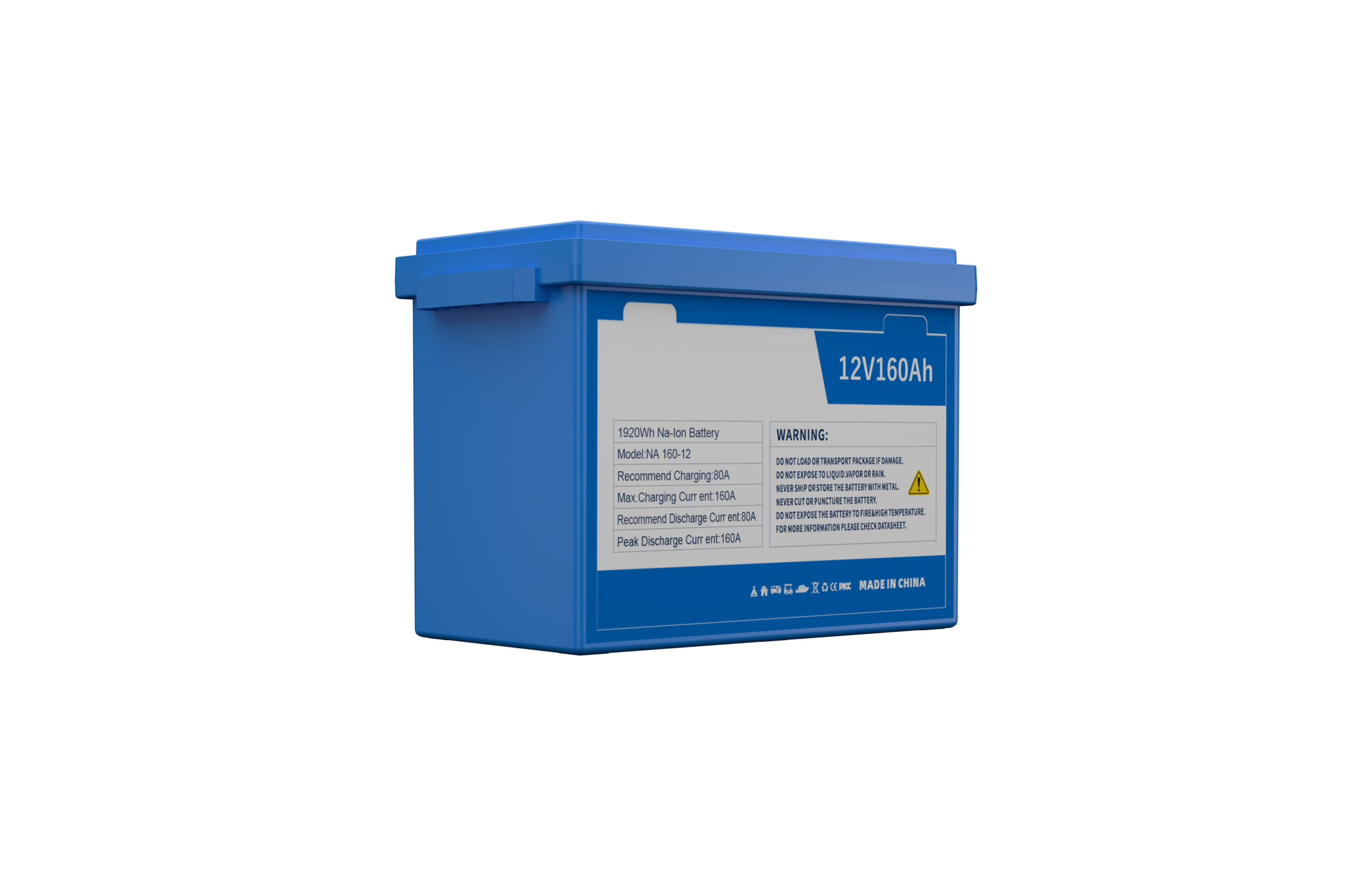

12V160AH NFPP Sodium Ion Battery Pack
This 12V 160Ah NFPP sodium-ion battery pack strikes a perfect balance of ultra-low lifecycle cost, top safety, excellent low-temperature performance, fast charging and long cycle life. Built with premium NFPP cells and full-protection BMS, it supplies stable power for all mobile and off-grid energy storage systems. As an ideal upgrade over lead-acid and lithium batteries, it brings stronger power output and reliable, worry-free operation, fully compliant with industrial energy policies.
- RV & caravan power
- Agricultural machinery
- Engineering equipment
- UPS emergency power supply
- Low-speed vehicle
Advantages

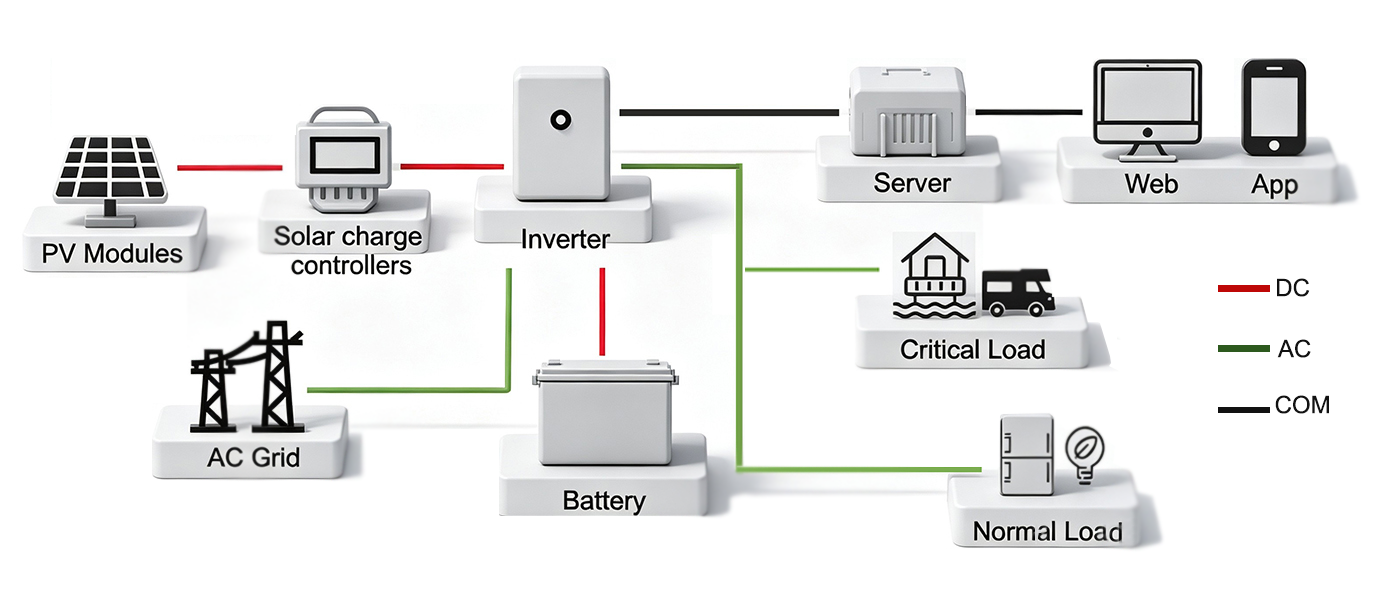

Application
Parameters
Model
NA-LESS-12160
Battery Type
NaCP71173208-160E3
Battery Configuration
1P4S
Nominal Energy
1.92kWh
Rated Capacity
160Ah
Nominal Voltage
12V
Voltage Range
7.2V~13.8V
Recommended Charge and Discharge Current
80A
Standard Charging and Discharging Current
100A (@0.6C)
Continuous Charging and Discharging Current
100A
Peak Discharge Current
170A @10s
Cycle Life
≥10000 (@35℃, 70% DOD)
Operation Condition
Indoor/Outdoor
Installation
Horizontal Mounting
Cooling Method
Natural Cooling
Relative Humidity
≤75%RH
Altitude
≤2000m
IP Rating
IP20
Charge Temperature
0℃~60℃
Discharge Temperature
-40℃~60℃
Storage Temperature
-20℃~45℃
Communication
Bluetooth
Battery Protection
Over-current, Over-voltage, Overcharge, Over-discharge, High Temperature, Short Circuit, SOC Estimation, Equalizing
Weight
24kg
Dimensions (L×W×H)
384 × 204 × 271mm
Max. Series Quantity
2-4 Battery Packs
Certification
MSDS, UN, CE and RoHS
Expansion Function
Charger
