Flexible Multi-Capacity Configurations
Supporting 7~25 battery packs series connection, Adjustable total
capacity from 53kWh to 192kWh to match different factory &
commercial building load curves
Flexible Capacity Range (53–192kWh)
Modular Stackable Design
Custom OEM Branding
All-in-One Intelligent Management
Rack-mounted Sodium Ion BESS

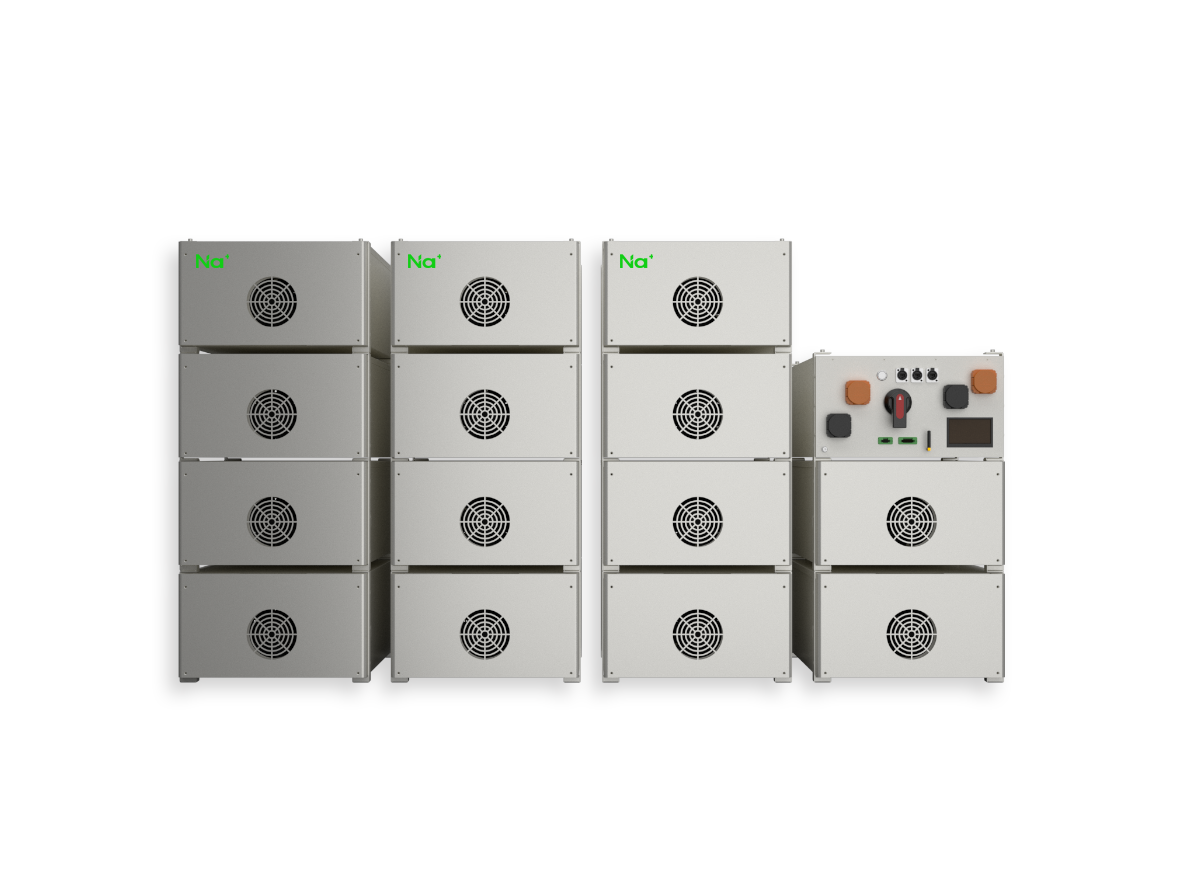

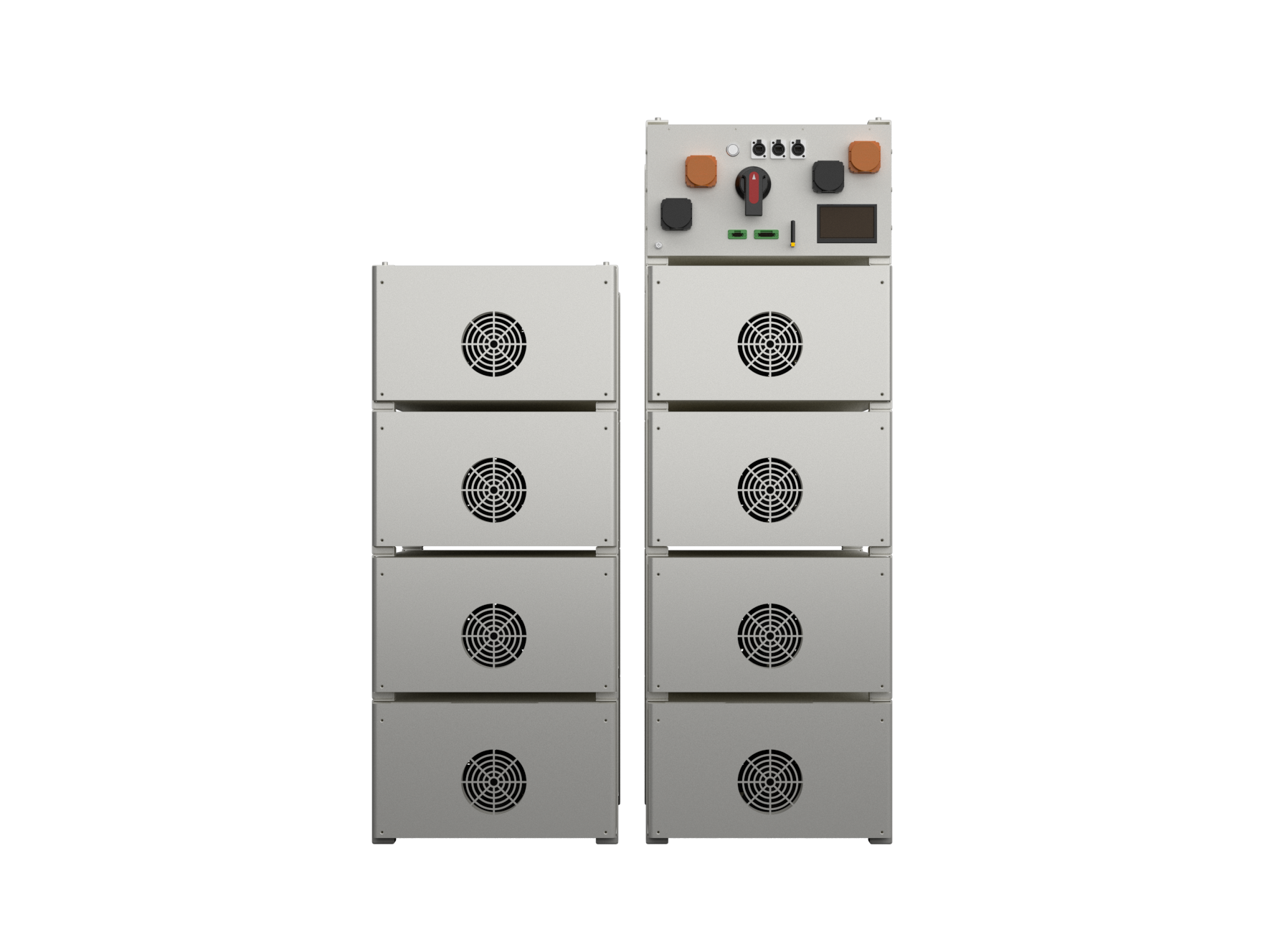

53-192kWh Stackable Modular Sodium Ion BESS
This stackable modular Battery Energy Storage System (BESS) offers a highly flexible solution for industrial and large-scale energy storage, with a scalable capacity ranging from 53kWh to 192kWh. Its modular design allows for easy stacking and parallel expansion, adapting to your evolving energy needs. The system integrates an intelligent management system and an efficient thermal control system, delivering high safety, a long cycle life, and stable operation in a compact footprint.

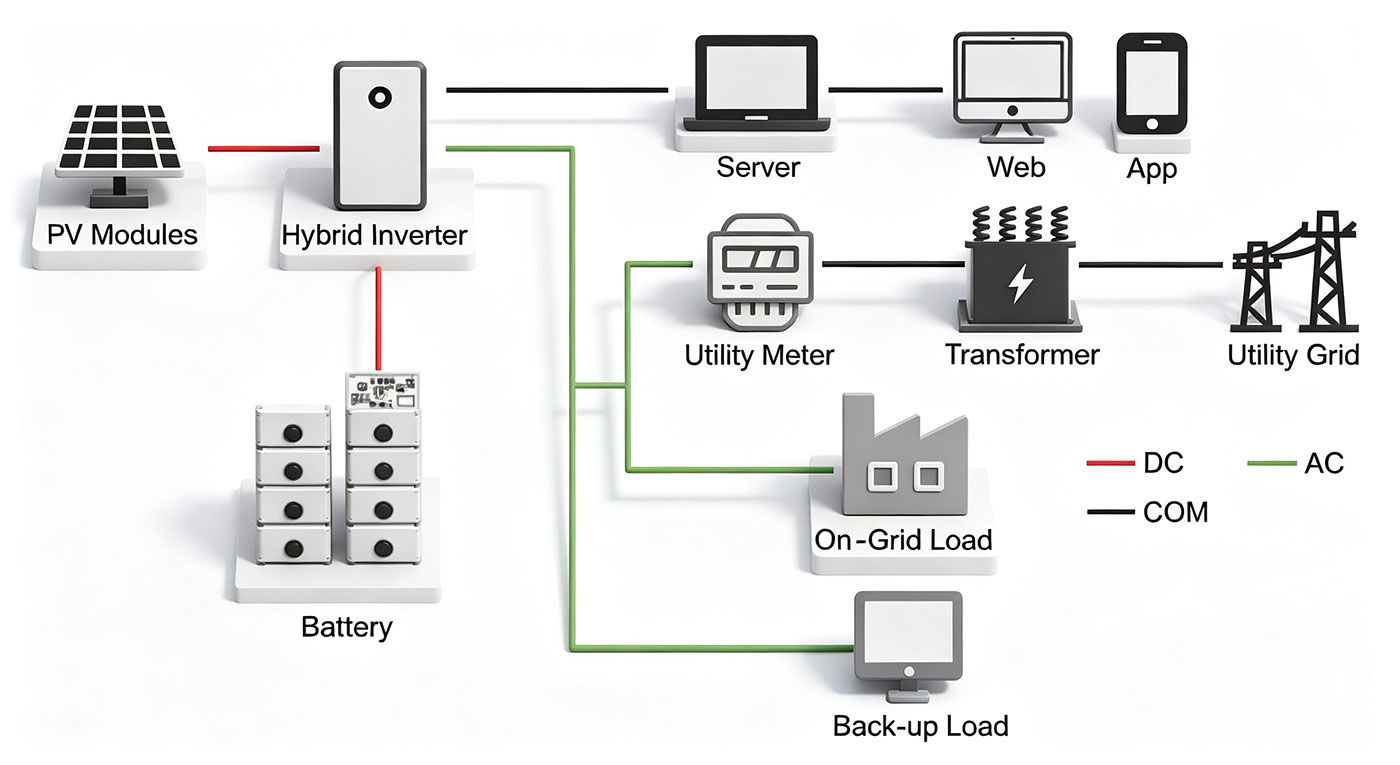

- Household photovoltaic power storage
- Industrial & commercial peak-valley price arbitrage
- Emergency backup power for equipment and computer rooms
- Modular energy storage with multi-unit rack parallel expansion
Advantages
Application
Parameters
Model
NA-MESS-16S*7+
Cell Type
NaCP71173208-160E3

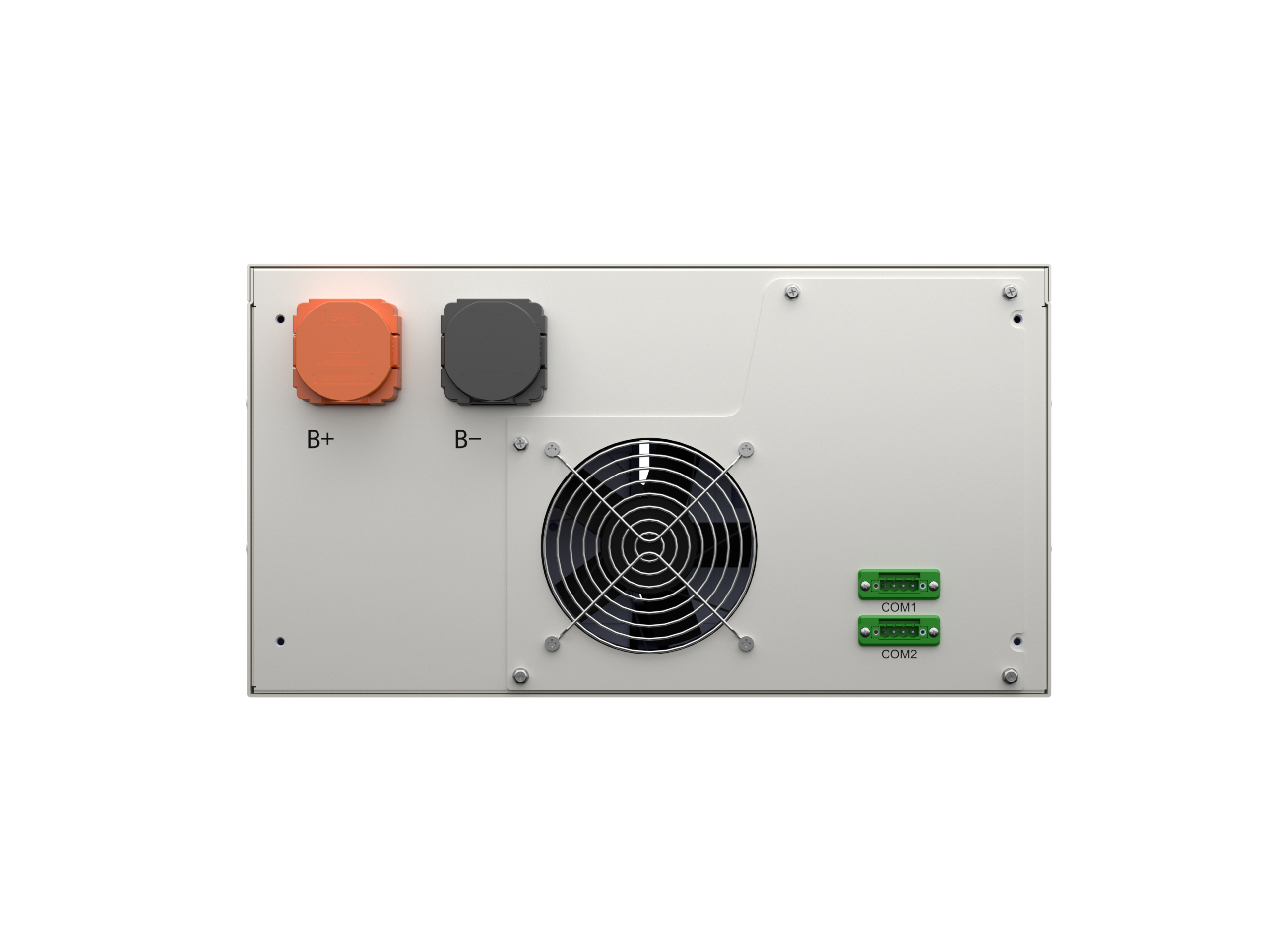

Battery Configuration
1P16S
Nominal Voltage
48V
Rated Capacity
160Ah
Energy
7.68kWh
Dimension
496 × 810 × 235mm
Weight
120kg
Cycles
10000 cycles
Cooling
Air Cooling
Installation
Rack
Testing and Certification
UN,MSDS,CE

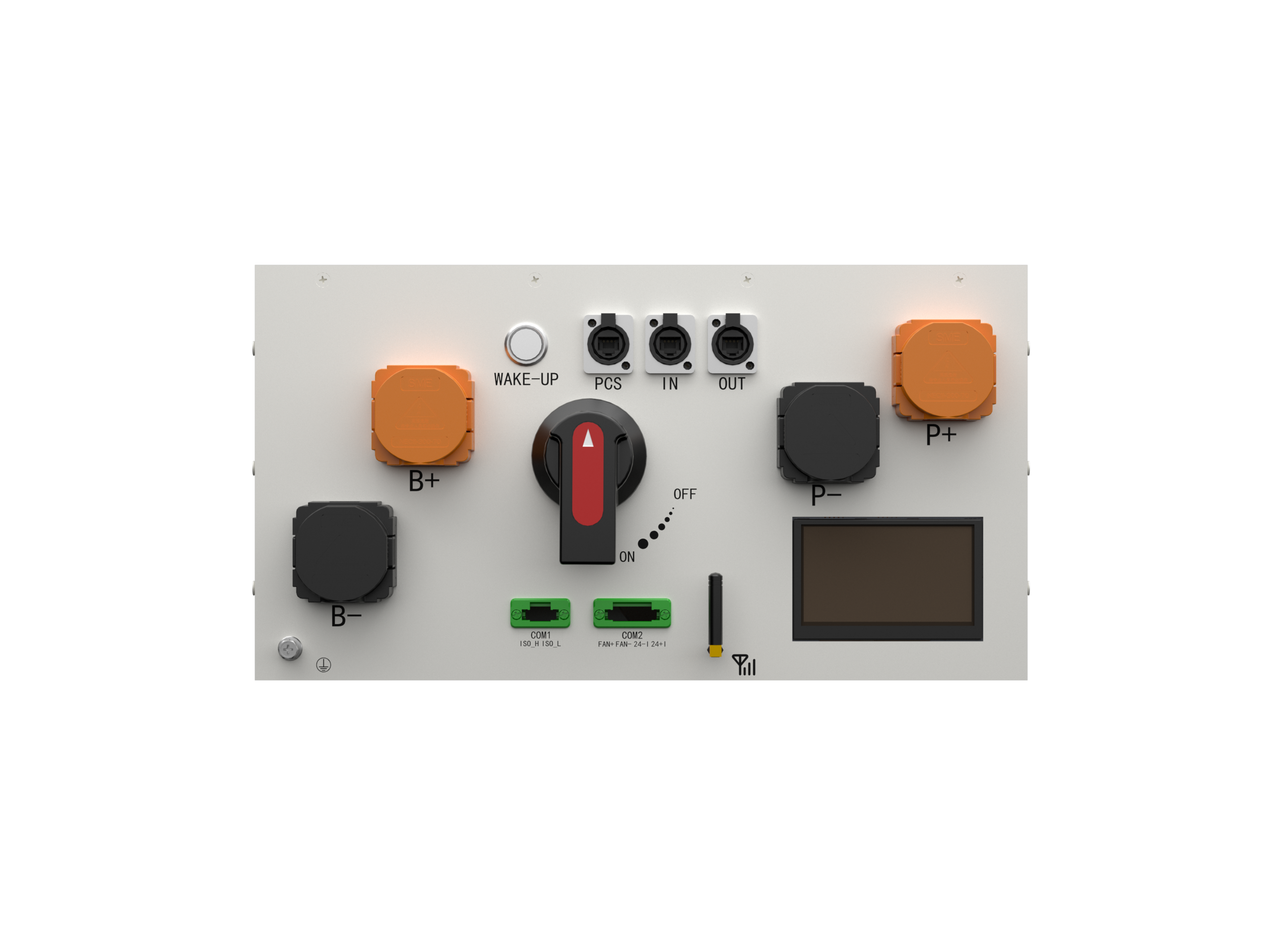

High-voltage Box Model
NFPP HVBOX15000
Operating Voltage
170~1500V
Nominal Charge/Discharge Current
157A
Max. Charge/Discharge Current
157A
Operating Temperature Range
-20℃~80℃
Ingress Protection
IP20
Dimensions (W×D×H)
435 × 545 × 178mm
Weight (Approx.)
15.5kg
Number of Series-Connectable Battery Packs
7~25 Packs
