Intelligent Independent Air Cooling System
Precise temperature control ensures uniform
cell temperature throughout service life
All-in-One Cabinet
Plug-and-Play
Custom Branding Available
On/Off-Grid Support
Cabinet Sodium Ion BESS

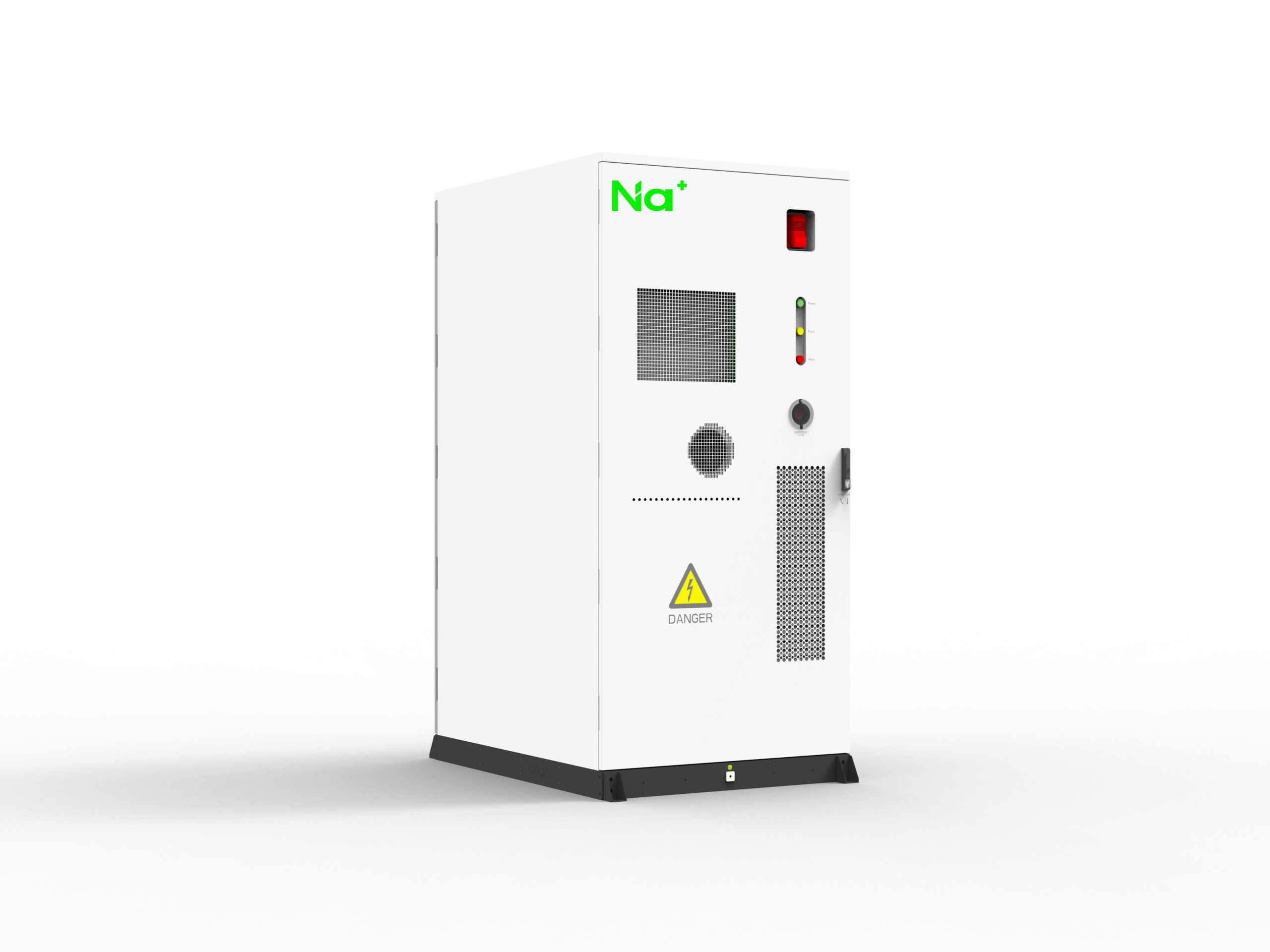

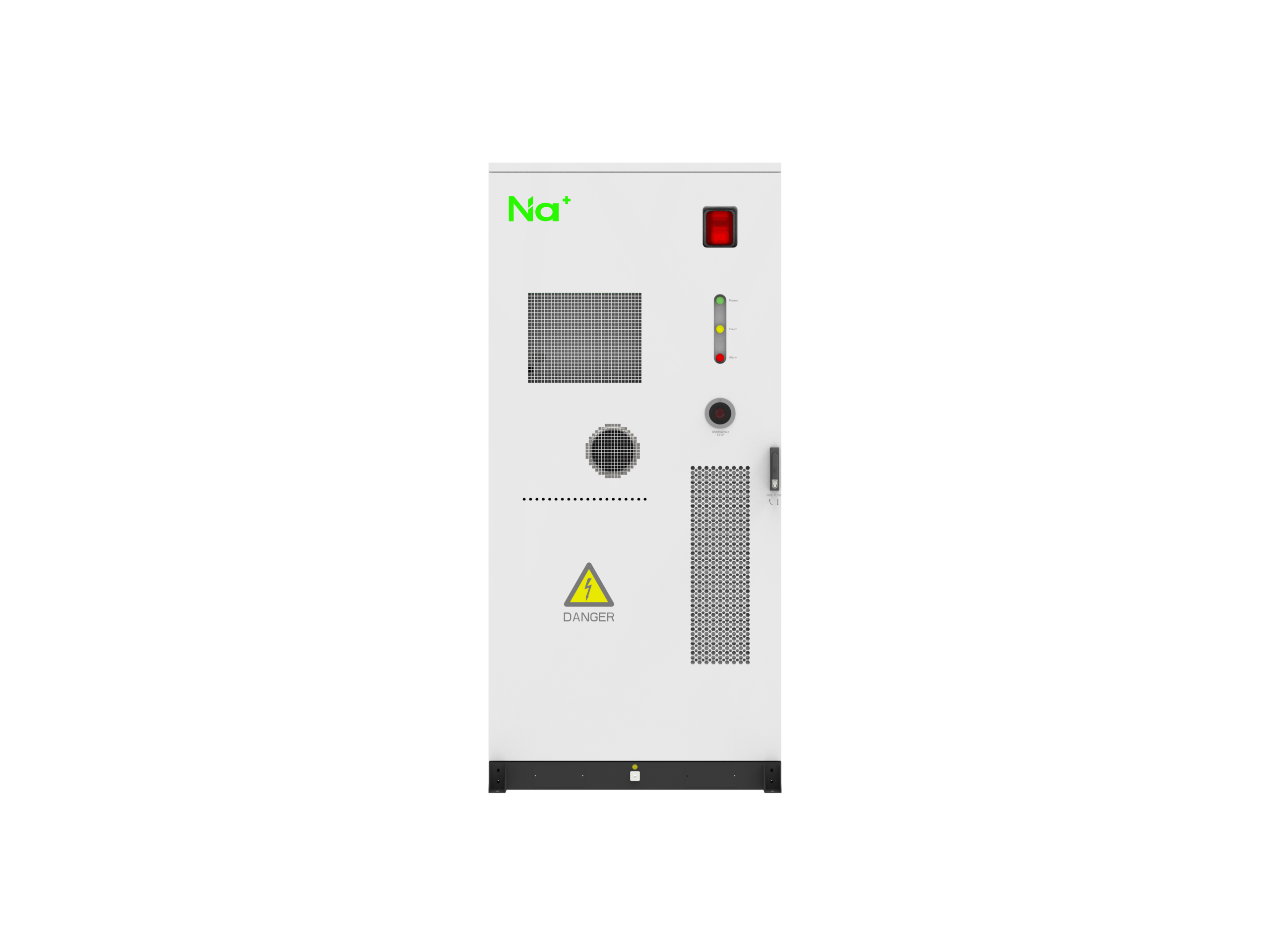

76KWH Cabinet Sodium Ion BESS
This 76kWh cabinet-type sodium-ion BESS is a truly plug-and-play energy storage solution. It integrates the battery pack, Battery Management System (BMS), and heat dissipation system into a single, robust cabinet, drastically simplifying deployment and commissioning. It supports both on-grid peak shaving and off-grid emergency power supply, making it a versatile choice for industrial and commercial facilities.

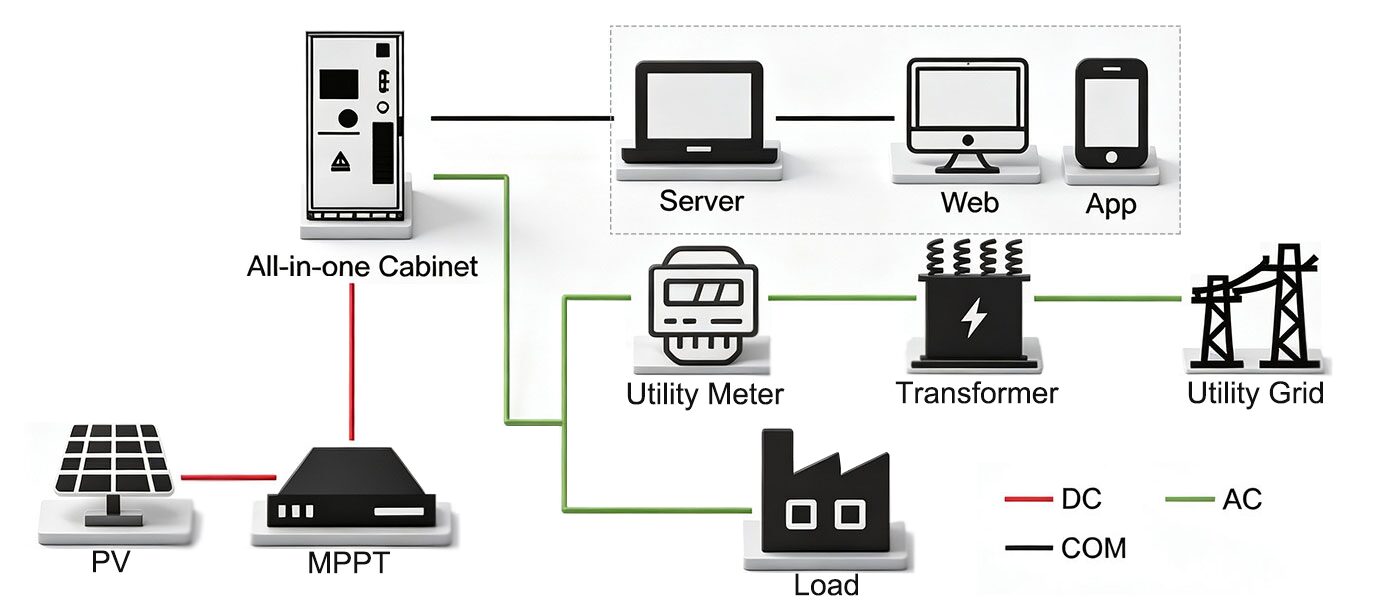

- PV energy storage for industrial and commercial factories
- Reduce electricity cost through peak-valley arbitrage
- Uninterrupted backup power during grid blackouts
- Off-grid independent power supply for small projects
Advantages
Application
Parameters
Model
NA-CBESS-76
Battery Type
NaCP71173208-160E3
Nominal Capacity
160Ah
Battery Configuration
1P160S
Nominal Energy
76.8kWh
Nominal Voltage
480V
Operating Voltage Range
320~552V
Max. Continuous Charge/Discharge Current
80A
Charge/Discharge Rate
0.5P
Max. Charge-discharge Efficiency
93%
Cycle Life
≥10000 (@25℃±2℃, 0.5P/0.5P, 70% EOL)
Standard Charge/Discharge Current
160A
Rated Charge/Discharge Power
30kW
Max. Charge/Discharge Power
33kW
Max. Overload Capacity
110%~120% 10min; 120%~130% 1min; 130%~150% 200ms; >150% 100ms
Max. Charge/Discharge Current
90A
Rated Grid Voltage
400V
Allowed Grid Voltage Range
400V (±15%) Vac
Allowed Grid Frequency
50 (±2.5) Hz
Voltage Harmonic Distortion
<3%
Grid Type
3P4W+PE
Power Factor
Listed: 0.8~1 leading or lagging; Actual: 0.1~1 leading or lagging
Cooling Method
Intelligent Air Cooling
Ingress Protection
IP55
Anti-corrosion Grade
C4
Max. System Efficiency
96%
Charge Operating Temperature
-30℃~50℃
Discharge Operating Temperature
-30℃~50℃
Storage Temperature
-20℃~45℃
Relative Humidity
15%~90% (Non-condensing)
Max. Working Altitude
≤3000m
Communication
LAN / CAN / RS485
Cooling
Air Cooling
Dimension
1050 × 1360 × 2250mm
Net Weight
1700kg
Max. Parallel
10
System Certification
UN38.3, MSDS, IEC61009, IEC62477, Grid-tied Standard, EN50549-1, G99, VDE4105, VDE4110, AS477.2:2020, CEI 0-21, Poland Certification, R25
