15.36kWh ultra-large single-unit capacity
Reduced number of parallel connections,
enhancing overall stability of the whole-house system
Key Selling Points: High Capacity
Whole-House Backup
Flexible Expansion
OEM/ODM Available
Residential Sodium Ion Battery
48V320AH Floor-Standing Residential Sodium-ion Battery

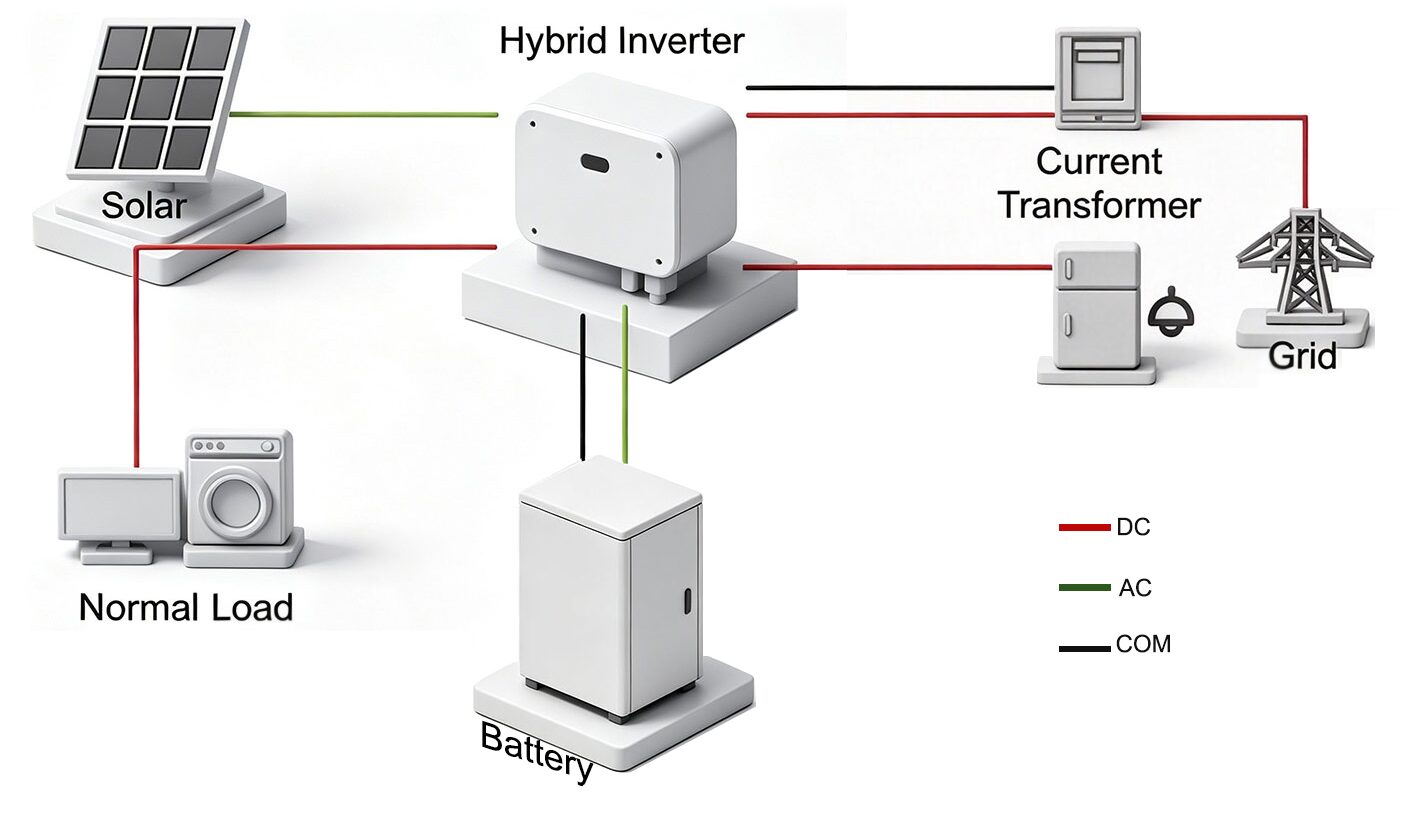

This floor-standing, high-capacity sodium-ion energy storage power station is designed for large homes and high-power applications. It provides robust solar power storage, peak-valley cost savings, and whole-house emergency backup. Its modular design supports flexible capacity expansion, making it a future-proof investment for comprehensive home energy management.
- Household PV storage
- Peak-valley electricity cost reduction
- Emergency backup power
- Home energy management
Advantages
Application
Parameters
Model
W16-5C
Battery Type
NaCP71173208-160E3
Battery Configuration
1P16S
Nominal Energy
15.36kWh
Rated Capacity
320Ah
Nominal Voltage
48V
Voltage Range
32V~55.2V
Standard Charge and Discharge Current
160A
Max. Continuous Charging and Discharging Current
200A
Efficiency
99% (@25℃, 0.5C)
Cycle Life
≥10000 (@35℃, 70% DOD)
Operation Condition
Indoors / Under Outdoor Eaves
Installation
Floor-standing or Wall-mounted
Relative Humidity
<85%RH
Cooling Method
Natural Cooling
Altitude
≤2000m
IP Rating
IP65
Charge Temperature
0℃~60℃
Discharge Temperature
-40℃~60℃
Storage Temperature
20℃~45℃
Communication
RS232 / CAN / RS485
Weight
214kg
Dimensions (L×W×H)
1000 × 724 × 243mm
Max. Series Quantity
20
Certification
UN38.3, MSDS
Expansion Function
Aerosol Fire Extinguishing Device / Bluetooth
