Why choose 24V160AH Sodium Ion Battery Pack in Year 2026

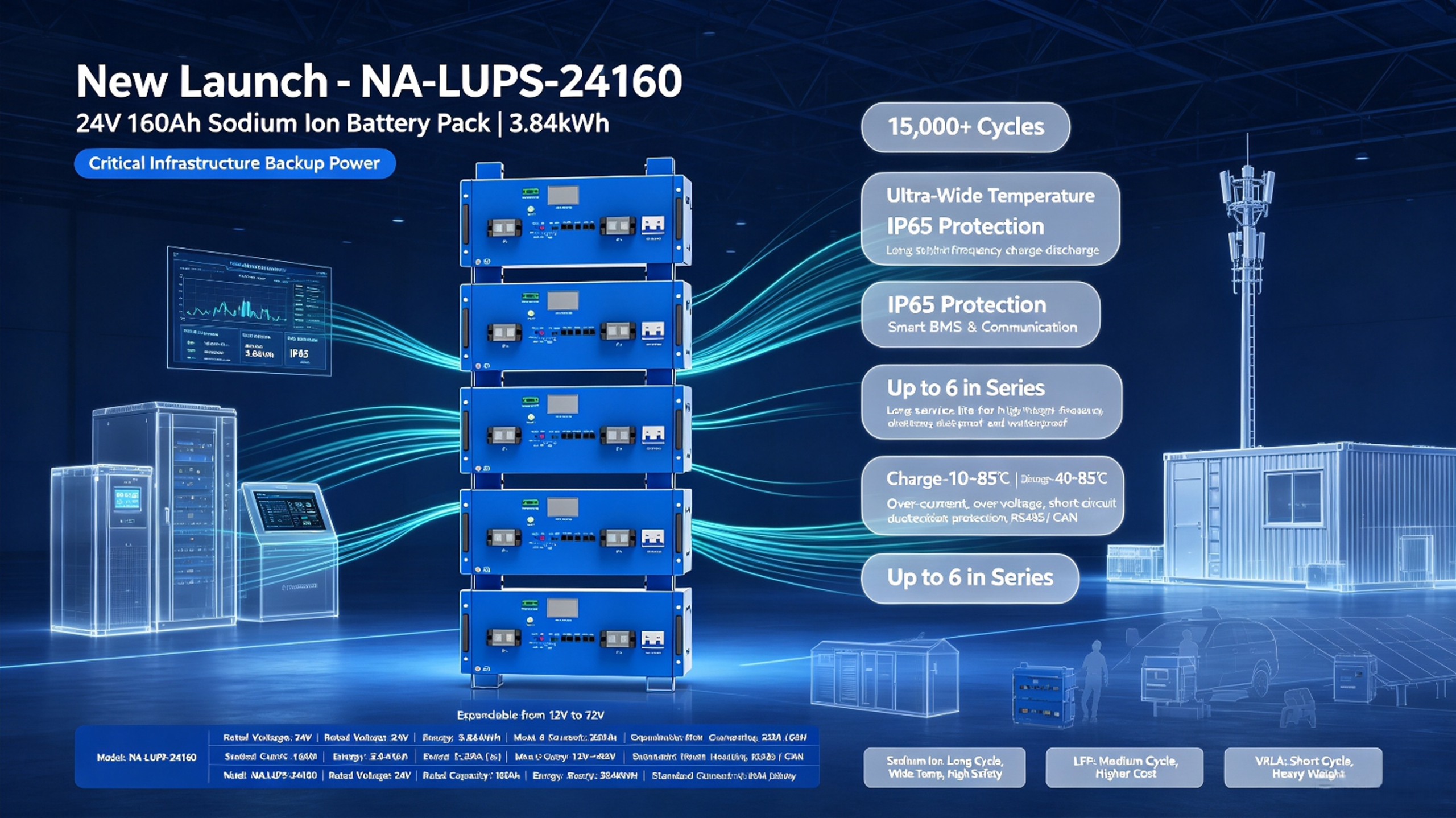

Highstar Sodium newly launch a new 24V160AH Sodium Ion battery pack, Its model is NA-LUPS-24160, It is a 24V 160Ah sodium-ion battery pack with a nominal energy storage of 3.84KWH.
It is specifically designed for the application of critical infrastructure, it supply stable and safe power for Main power system, Uninterruptible Power Supply (UPS), ATS Automatic Switching Device, Power Supply Intelligent Monitoring Platform and Special environmental protection facilities
Regarding environmental adaptability and electrical performance, this battery supports charging at -10℃~85℃ and discharging at -40~85℃, The standard charge/discharge current is 200A, with continuous charge/discharge up to 160A, and a peak discharge of 220A (1s). The cycle life exceeds 15,000 cycles under 0.5C, 25℃, and 70% DOD conditions, and with comprehensive BMS protection and IP54 protection, it ensures long-term stable operation.
In terms of applications, the NA-LUPS-24160 can directly replace lead-acid batteries, is seamlessly compatible with mainstream inverters, and supports up to 6 units in series (12V~72V).
Whether for home emergency power backup, RV travel power supply, or off-grid photovoltaic energy storage, it can provide efficient and reliable power protection.
- Core Advantages:
- Powerful Capability of Battery Current Output
l Standard charge/discharge current: 200A, continuous charge/discharge up to 200A.Peak discharge current: 220A (lasting 1 second),.
- Intelligent and Comprehensive BMS Protection
Built-in Battery Management System (BMS) with multiple protections against over-current, over-voltage, overcharge, high temperature, and short circuit. It also supports accurate SOC estimation and cell balancing, effectively extending the overall battery pack lifespan. Communication interfaces support RS485 and CAN, facilitating integration with inverters and monitoring screens.
- Ultra-long Cycle Life and Wide Temperature Range
- Cycle Life: Over 15,000 cycles under 0.5C, 25±2℃, and 70% DOD conditions. Based on one charge-discharge cycle per day, the lifespan exceeds 27 years.
- Operating Temperature: Charging -10~85℃, discharging -40~80℃;
- Robust and Reliable Structural Design
- IP65 protection rating, dust-proof, waterproof, shockproof, and oxidation-resistant, suitable for automotive and outdoor installation.
- Stainless steel shell, highly impact-resistant; dimensions L(480)*W(476)*H(220)mm (excluding handle and terminals), weight approximately 27kg, supports horizontal installation, saving space.
- Optional LCD display and Bluetooth module for real-time viewing of information such as voltage, current, and remaining battery power.
- Why we choose 24V160AH sodium ion battery in Year 2026
Towards to the application scenario of critical infrastructure, it supply stable and safe power for Main power system, Uninterruptible Power Supply (UPS), ATS Automatic Switching Device, Power Supply Intelligent Monitoring Platform and Special environmental protection facilities, whist safety, low &high temperature performance, cycle life, and cost are key factors, NA-LUPS-24160 possesses the following unique advantages:
| Comparative item | 42V160AH SIB | 24V160AH LFP | 24V160AH VRLA |
| Cycle life (70% DOD) | ≥15000 cycles | 3000~6000 cycles | 300~800 cycles |
| Low-temperature discharge (-40℃) | Capacity >90% | Significant capacity reduction | Severe capacity reduction |
| Depth of discharge | 95% | 80%% | 50% (to avoid faulty) |
| Weight (equivalent to usable capacity) | Light | Middle | About twice that of 12V sodium ion batteries |
| Raw material costs | Low (sodium resources are abundant) | Higher (lithium, cobalt, nickel) | Middle (but short lifespan) |
| Thermal runaway risk | Extreme Low | High | Middle |
In 24V scenarios, sodium ion batteries are an ideal choice over lithium and lead-acid batteries due to their low-temperature adaptability, ultra-long lifespan, and high safety, especially suitable for cold regions and high-frequency charge-discharge applications.
Parameter Overview (Core Data)
| Item | Specification |
| Model | NA-LUPS-24160 |
| Rated Voltage | 24V |
| Rated Capacity | 160AH |
| Energy | 3.84KWH |
| Voltage range | 12V-27.6V |
| Standard charge/discharge current | 160A |
| Continuous charge and discharge current | 160A |
| Peak discharge (1s) | 220A |
| Cycle life | ≥15,000 times (0.5°C, 25°C, 70% DOD) |
| Operating temperature | Charging: -10~85℃ / Discharging: -40~85℃ |
| IP Grade | IP65 |
| Communication | RS485, CAN |
| Size | L(480)*W(476)*H(220)mm |
| Weight | 50KG |
| Serial | Maximum of 6 Blocks (12V~72V) |
| Optional features | Bluetooth, heating, display screen |
