Why we develop telecom sodium ion battery？
Why we develop telecom sodium ion battery？
Energy use is responsible for more than 92% of telecommunications network operating costs, 5G and coming 6G will drive unprecedented increases in power consumption across the telecom network, while telecom industry as a whole has pledged to reach net zero by 2050, and the most ambitious operators are striving to do it as early as 2026, commitments to carbon neutrality that will require to optimize energy consumption. However, rising energy costs, geopolitical pressure,growing power consumption and decarbonization goals, Telecom operators are paying more attention to the costs and carbon footprint, which are reducing the consumed energy, source battery and power wisely, and more efficient operation.
- There are following technical issues of LFP battery for telecom sites
- Most telecom outdoor base stations are often unattended, which result to Li-ion batteries susceptible to safety risks under improper maintenance. Such as mechanical abuse, electrical abuse, and thermal abuse, because of these factors that thermal runaway of Li-ion battery cells, posing a fire and explosion hazard.
- Under the complex operating conditions, the actual lifespan can be significantly reduced due to factors such as ambient temperature fluctuations, charging and discharging strategies, and cell consistency, therefore the cycle life of LFP battery can be reduced by more than 60%.
- Most importantly Telecom LFP battery experience a sharp spike in internal resistance at lower temperatures, dropping their standalone discharge efficiency to a mere 50-60% at -20℃, during a real grid failure, the precious battery capacity meant to keep vital telecom gear online for as long as possible is wasted on self-heating, which drastically shortens actual network backup time.
- Direct sunlight can easily cause the internal temperature of outdoor base station cabinets to surge into the 55–60℃ range during summer. Under continuous high-temperature exposure, LFP battery experience accelerated chemical degradation and parasitic side-reactions, resulting in premature capacity fading and a severely shortened lifespan. For remote or rugged terrains where maintenance requires mountain climbing or helicopter access, frequent battery replacements trigger astronomical OPEX costs.
- There are also some disadvantages of LFP battery for telecom application
- The raw material of Li-ion battery is in great fluctuations, the supply chain of Li-ion battery is not stable, therefore the Capex and TCO are increasing. For example,from January to April 2026, the price of lithium carbonate fluctuated between 120,000 and 130,000 yuan/ton. In May, it surged to 201,400 yuan/ton. As of June 26, it is in a high-level fluctuation pattern, and the supply and demand for the whole year will only be in a tight balance.
- In 2023, the EU adopted a new version of the Battery and Waste Battery Regulation, which clearly defined mandatory recycling targets: by 2031, the recycling rate of lithium in waste batteries must reach 80%, cobalt 90%, and nickel 95%. At the same time, it fully implemented the Extended Producer Responsibility (EPR) system, requiring battery manufacturers to assume recycling obligations throughout the entire life cycle, thus ensuring the implementation of the recycling system from an institutional perspective. However, Currently, the core challenge is the excessively high cost of recycling. At the same time, the Basel Convention restricts the cross-border transshipment of waste batteries and black powder, making it difficult and costly to collect and transport raw materials. In addition, under the EPR system, there is an unequal distribution of benefits between Chinese and foreign companies, making it difficult for the industry to make a profit overall.
- In order to resolve the current challenges of LFP battery for telecom operation, we have integrated NFPP prismatic sodium ion cell and smart BMS, based on extremely safe sodium ion battery technology and advanced BMS technology, We have developed an advanced, long-cycle, intelligent, cost-effective and environmentally friendly sodium-ion battery for telecom sites.
- In 2026, we have 2 models of solar sodium ion batteries:
- Smart 48V100AH sohttps://www.highstar-sodium.com/product/48v100ah-smart-telecom-sodium-ion-battery/dium ion battery (Cabinet Mount)
- 48https://www.highstar-sodium.com/product/48v160ah-telecom-sodium-ion-battery/V160AH sodium ion battery (Rack Mount)

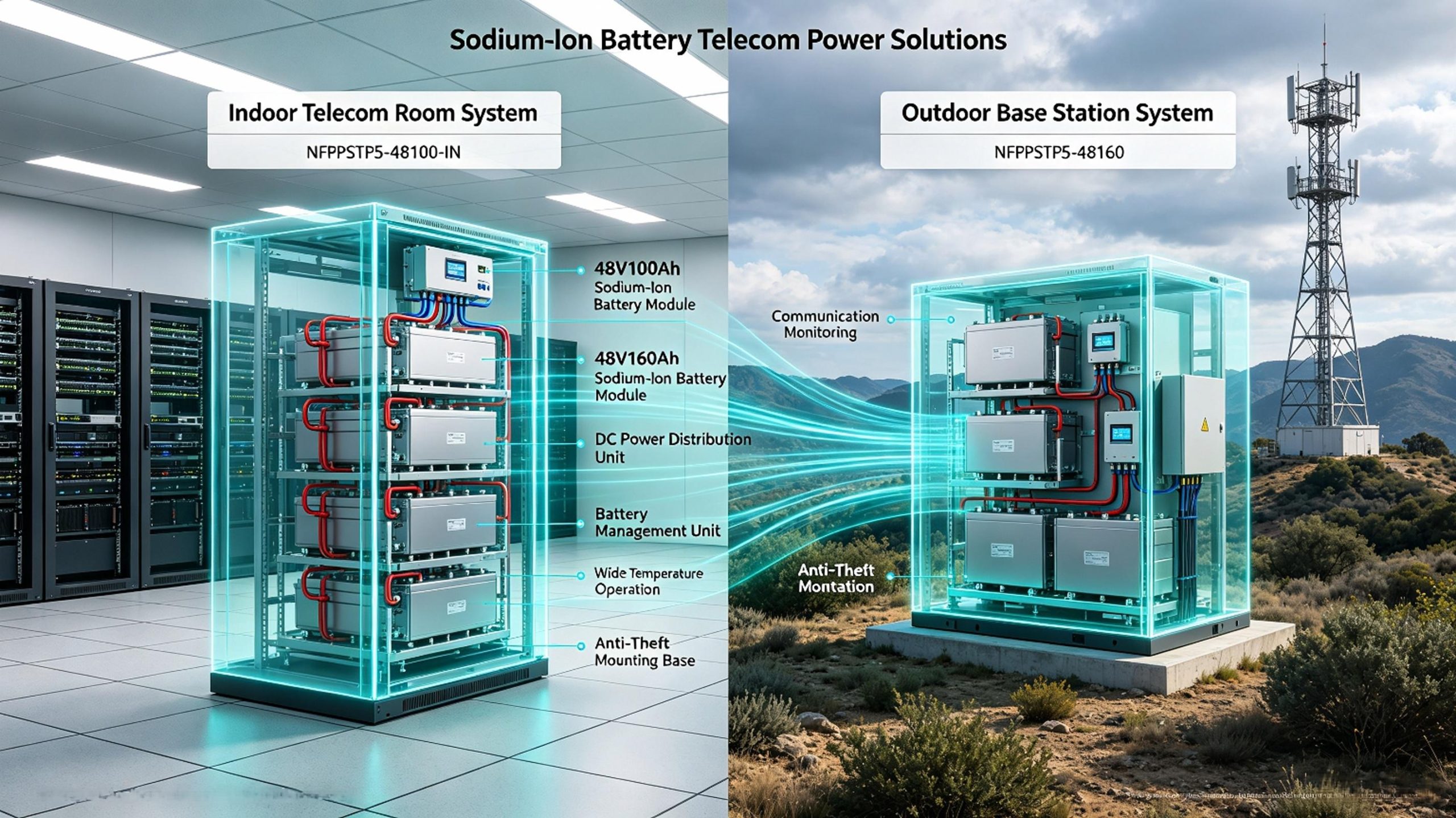

- These 2 models of 48V telecom sodium ion battery are primarily designed for telecom indoor or outdoor site, providing a safe, reliable, stable, and environmentally friendly power supply for telecom equipment.
Why chose telecom sodium ion battery?
- Safest NFPP SIB technology, never fire nor explosion
Based on sodium Ion battery technology, solar sodium ion battery are made of 160AH NFPP Sodium Ion Prismatic Cell, this mass-produced and needle-punched smokeless cells have fully passed rigorous safety testing,no risk of fire or explosion
- All-weather operation, adaptable to extreme climates.
48V telecom sodium-ion battery can discharge from -40℃ to 60℃，it ensures stable operation even in harsh winters or scorching summers, It provides safe, reliable, stable, and environmentally friendly power for home and light commercial users under varying operating temperatures.
- Full levels safety from cell, module, pack and system
48V telecom sodium ion battery is built-in multi-layer battery management system protection functions, that can ensure safe operation under any operating conditions. There are aerosol fire extinguisher with module, to ensure rapid and effective response in emergencies. Meanwhile,IP65 protection not only provides dust and water resistance but also withstands harsh weather conditions such as sandstorms, eliminating any risk.
- Various installation methods, easy to install.
48V telecom sodium ion battery supports rack mount installation, wall mount installation and floor standing installation, you can install in door or outdoor. Because of IP65 dust-proof and waterproof protection, it is easy to resist rain and sandstorms, most importantly, its compact designs can help you saves space, convenient and safe installation.
- Flexible expansion to meet ever-growing needs.
Smart 48V100AH sodium ion battery supports up to 32 blocks in parallel, while 48V160AH sodium ion battery supports 16 blocks in parallel
What are the core advantages?
- It is green and environmental. Telecom Sodium ion Battery is made of 100% green material, unlike Li-ion battery or VRLA lead acid battery, its material is non-hazardous and no rare-earth elements,
- Strong redundant safety. The discharged power of 48V telecom sodium ion battery is guaranteed, battery no fire, no burning or explosion.
- Longer battery life. There are 15000 cycles @ 35℃，70% DOD, therefore 48V telecom sodium ion battery supports more than 20 years service life
- Smart, Simple & Secure. There are advanced BMS technology, and plus DC-DC converter technology, therefore smart 48V100AH sodium ion battery support hybrid use.
- Working in extreme temperature.48V telecom sodium ion battery can discharge between -40℃-80℃, especially it can discharge more than 85% capacity @ -40℃
- Fast charging ability. Telecom sodium ion battery support fast charging @1C charging rate, meanwhile it supports constant voltage discharge and auto-balancing.
- Interactive with various DC controllers. Telecom sodium ion battery can support the DC controllers, such as Huawei, Delta, Vertiv, Eltek and so on.
- Strictly tested & certified. The prismatic sodium ion cell for telecom sodium ion battery is certificated by UL, also the 48V sodium ion battery is certificated by CNAS, CE, RoHS are able available.
The offered models for choice
| Model | NFPPSTP5-48100-IN | NFPPSTP5-48160 |
| Cell Type | NaCP71173208-160E3 | NaCP71173208-160E3 |
| Nominal Voltage | 48V | 48V |
| Rated Capacity | 100AH | 160AH |
| Energy | 4.8KWH | 7.68KWH |
| Dimension | 530*510*89mm | 516*754*230mm |
| Weight | 68kg | 90.5Kg |
| Max.Current | 1C,100A | 0.6C,100A |
| Cycles | 15000 cycles | 15000 cycles |
| Max. Series Quantity | 32 | 16 |
| Expansion Function | SNMP, Hybrid operation | Bluetooth, Wi-Fi,Breaker,LCD |
Performance Comparison Between 48V100AH Telecom SIB and 48V160AH Telecom SIB
| Capacity | Cycle | Size | Max.A | Hybrid | SNMP | DC Controller | LCD | Breaker | Anti-Theft |
| 48V100AH | 15000 | 442*550*176 | 100A | Yes | Yes | Delta,Vertiv, Eletek,Enetek | NO | Yes | Gyroscope+Software |
| 48V160AH | 442*720*230 | NO | No | Yes |
Performance Comparison Between Telecom LFP Battery and Telecom SIB Battery
Comparison between telecom LFP battery and telecom SIB battery
| Items | Telecom LFP Battery | Telecom SIB Battery |
| Rated voltage | 48V | 48V |
| Cycle life @25℃, 70%DOD | 6000 cycles | 15000 cycles |
| Service life | 10 Years | 20 Years |
| Warranty life | 5 Years | 10 Years |
| Discharge @-40℃ | × | √ |
| Discharge @80℃ | × | √ |
| Charge @-20℃ | × | √ |
| Safety | × | √ |
| Hybrid | × | √ |
